VLI201094N slewing ring bearing VI.20.1094 G1 JINB

 VLI201094N slewing ring bearing VI.20.1094 G1 JINB

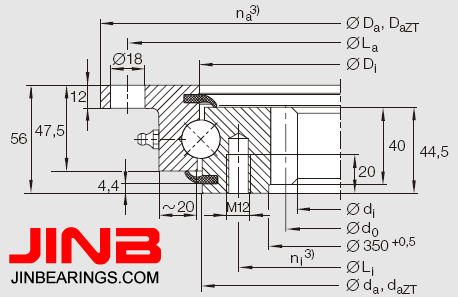

Slewing bearing No.VLI 20 1094 N
Weight[kg]91.5
Outer   diameter (O.D.)[mm]1198
Inner   diameter (I.D.)[mm]984
Bore diameter   of outer ring[mm]1095.5
Outside   diameter of inner ring[mm]1092.5
Overall   height[mm]56
External bolt   circle diameter[mm]1170
Number of   bolt hles16
Internal bolt   circle diameter[mm]1055
Number of   bolt hles24
Bolt hole   diameter[mm]18
Bolt size[mm]M12
Height of   outer ring[mm]47.5
Height of   inner ring[mm]44.5
Gear P.C.D.[mm]1000
Module[mm]8
Number of   Teeth125
Height of   flange ring[mm]12
JINB slewing   bearingVI.20.1094 G1
