VSU200944 slewing ring bearing SU.6.20.0944 JINB

 VSU200944 slewing ring bearing SU.6.20.0944 JINB

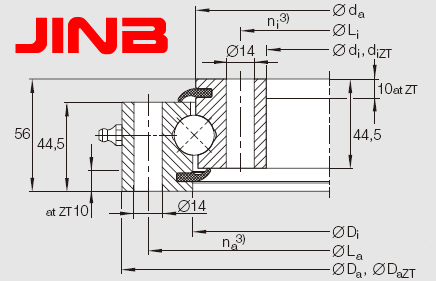

Slewing bearing No.VSU200944
Weight[kg]67
Outer   diameter (O.D.)[mm]1016
Inner   diameter (I.D.)[mm]872
Bore diameter   of outer ring[mm]945.5
Outside   diameter of inner ring[mm]942.5
Overall   height[mm]56
External bolt   circle diameter[mm]990
Number of   bolt hles44
Internal bolt   circle diameter[mm]898
Number of   bolt hles44
Bolt hole   diameter[mm]14
Bolt size[mm]14
Height of   outer ring[mm]44.5
Height of   inner ring[mm]44.5
Gear P.C.D.[mm]/
Module[mm]/
Number of   Teeth/
JINB slewing bearingSU.6.20.0944
