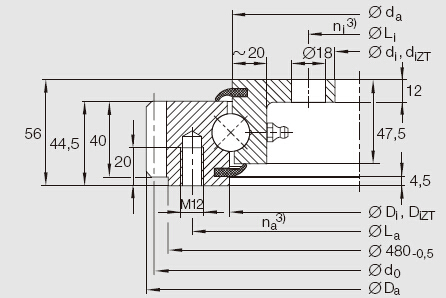

VLA200414N slewing ring bearing VE.20.0414 G1 JINB
| Slewing bearing No. | VLA 20 0414 N | |
| Weight | [kg] | 29.5 |
| Outer diameter (O.D.) | [mm] | 503.3 |
| Inner diameter (I.D.) | [mm] | 304 |
| Bore diameter of outer ring | [mm] | 415.5 |
| Outside diameter of inner ring | [mm] | 412.5 |
| Overall height | [mm] | 56 |
| External bolt circle diameter | [mm] | 455 |
| Number of bolt hles | 10 | |
| Internal bolt circle diameter | [mm] | 332 |
| Number of bolt hles | 12 | |
| Bolt hole diameter | [mm] | 18 |
| Bolt size | [mm] | M12 |
| Height of outer ring | [mm] | 44.5 |
| Height of inner ring | [mm] | 47.5 |
| Gear P.C.D. | [mm] | 495 |
| Module | [mm] | 5 |
| Number of Teeth | 99 | |
| Height of flange ring | [mm] | 12 |
| JINB slewing bearing | VE.20.0414 G1 | |
