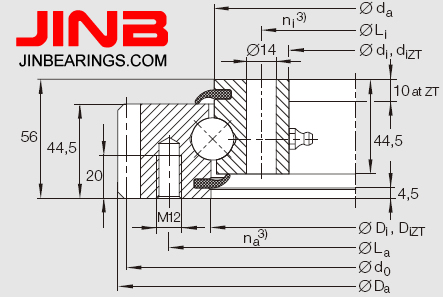

VSA200744N slewing ring bearing SE.6.20.0744 G1 JINB
| Slewing bearing No. | VSA 20 0744 N | |
| Weight | [kg] | 59 |
| Outer diameter (O.D.) | [mm] | 838.1 |
| Inner diameter (I.D.) | [mm] | 672 |
| Bore diameter of outer ring | [mm] | 745.5 |
| Outside diameter of inner ring | [mm] | 742.5 |
| Overall height | [mm] | 56 |
| External bolt circle diameter | [mm] | 785 |
| Number of bolt hles | 36 | |
| Internal bolt circle diameter | [mm] | 698 |
| Number of bolt hles | 40 | |
| Bolt hole diameter | [mm] | 14 |
| Bolt size | [mm] | M12 |
| Height of outer ring | [mm] | 44.5 |
| Height of inner ring | [mm] | 44.5 |
| Gear P.C.D. | [mm] | 828 |
| Module | [mm] | 6 |
| Number of Teeth | 138 | |
| JINB slewing bearing | SE.6.20.0744 G1 | |
