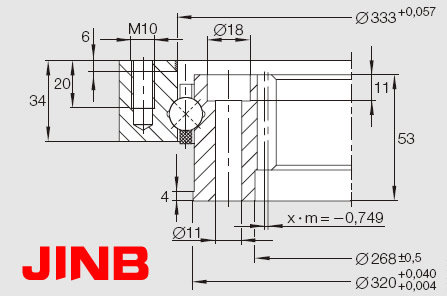

VI140326V small slewing ring bearing thin-wall slewing bearings
| Slewing bearing No. | VI140326V | |
| Weight | [kg] | 18 |
| Outer diameter (O.D.) | [mm] | 382 |
| Inner diameter (I.D.) | [mm] | 250 |
| Bore diameter of outer ring | [mm] | 333 |
| Outside diameter of inner ring | [mm] | 320 |
| Overall height | [mm] | 59 |
| External bolt circle diameter | [mm] | 362 |
| Number of bolt hles | 8 | |
| Internal bolt circle diameter | [mm] | 290 |
| Number of bolt hles | 8 | |
| Bolt hole diameter | [mm] | 18 |
| Bolt size | [mm] | M10 |
| Height of outer ring | [mm] | 34 |
| Height of inner ring | [mm] | 53 |
| Gear P.C.D. | [mm] | 255.5 |
| Module | [mm] | 3.5 |
| Number of Teeth | 73 | |
| tooth width | [mm] | 40 |
| JINB slewing bearing | SIL140326V | |
