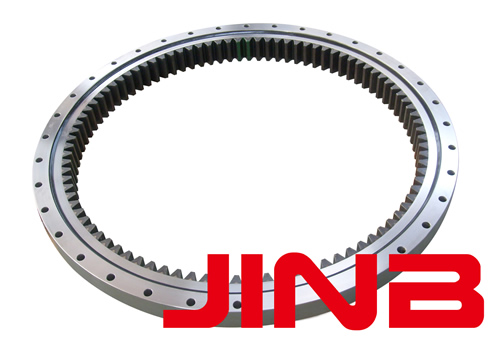

XSA140744N Crossed roller slewing ring bearing thin-wall slewing bearing
| Crosses roller slewing ring bearing | ||
| Slewing bearing No. | XSA140744N | |
| Weight | [kg] | 59 |
| Outer diameter (O.D.) | [mm] | 838.1 |
| Inner diameter (I.D.) | [mm] | 674 |
| Bore diameter of outer ring | [mm] | 747 |
| Outside diameter of inner ring | [mm] | 743 |
| Overall height | [mm] | 56 |
| External bolt circle diameter | [mm] | 785 |
| Number of bolt hles | 36 | |
| Internal bolt circle diameter | [mm] | 698 |
| Number of bolt hles | 40 | |
| Bolt hole diameter | [mm] | 14 |
| Bolt size | [mm] | M12 |
| Height of outer ring | [mm] | 44.5 |
| Height of inner ring | [mm] | 44.5 |
| Gear P.C.D. | [mm] | 828 |
| Module | [mm] | 6 |
| Number of Teeth | 138 | |
| tooth width | [mm] | / |
| JINB slewing bearing | XE.6.14.0744G1 | |
