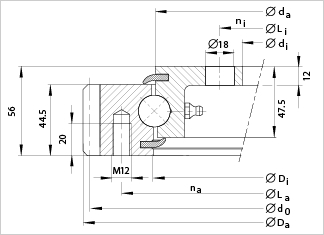

| BALL SLEWING RING WITH FLANGE RINGS |
|
| |
|
| VE.20.0000 G1 SERIES |
 |
1. Single-row design with four-point raceway geometry
2. Untoothed rings with flange thicknesses of 12 and 21 mm
3. Ball diameters 20 and 32 mm
4. Available ex stock or with a short delivery time as standard series in 14 sizes
5. Raceway diameters of 314 to 1,094 mm or 955 to 1,455 mm
6. For applications with light loads
7. Enables lightweight structures in spite of large bearing diameters
8. Applications: Handling technology, manlift platforms, turntables |
 |
JINB
Bearing Number |
Main Dimensions |
Fixing holes |
Gear teeth |
Tooth force |
Basic load ratings |
Mass |
Static |
Dynamic |
Da |
di |
Di |
da |
La |
na |
Li |
ni |
do |
m |
z |
Fz norm |
Fz max |
Cor |
Coa |
Cr |
Ca |
G |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[ - ] |
[mm] |
[ - ] |
[mm] |
[mm] |
[ - ] |
[kN] |
[kN] |
[kN] |
[kN] |
[kN] |
[kN] |
[kg] |
| VE.20.0311 G1 |
404 |
204 |
315.5 |
312.5 |
355 |
10 |
232 |
12 |
395 |
5 |
79 |
15.9 |
23.6 |
89 |
208 |
140 |
140 |
23 |
| VE.20.0414 G1 |
503.3 |
304 |
415.5 |
412.5 |
455 |
10 |
332 |
12 |
495 |
5 |
99 |
15.9 |
23.6 |
110 |
295 |
111 |
169 |
29.5 |
| VE.20.0544 G1 |
640.3 |
434 |
545.5 |
542.5 |
585 |
14 |
462 |
14 |
630 |
6 |
105 |
21.3 |
31.5 |
145 |
385 |
123 |
188 |
41.5 |
| VE.20.0644 G1 |
742.3 |
534 |
645.5 |
642.5 |
685 |
16 |
562 |
16 |
732 |
6 |
122 |
21.3 |
31.5 |
171 |
455 |
131 |
200 |
48.5 |
| VE.20.0744 G1 |
838.1 |
634 |
745.5 |
742.5 |
785 |
18 |
662 |
16 |
828 |
6 |
138 |
21.3 |
31.5 |
198 |
530 |
138 |
211 |
54.5 |
| VE.20.0844 G1 |
950.1 |
734 |
845.5 |
842.5 |
885 |
18 |
762 |
18 |
936 |
8 |
117 |
28.3 |
42 |
224 |
600 |
145 |
222 |
65.5 |
| VE.20.0944 G1 |
1046 |
834 |
945.5 |
942.5 |
985 |
20 |
862 |
20 |
1032 |
8 |
129 |
28.3 |
42 |
250 |
670 |
151 |
231 |
71.5 |
| VE.20.1094 G1 |
1198 |
984 |
1096 |
1093 |
1135 |
22 |
1012 |
20 |
1184 |
8 |
148 |
28.3 |
42 |
290 |
770 |
160 |
244 |
83.5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
VLA 20 0414 N
VLA 20 0544 N
VLA 20 0644 N
VLA 20 0744 N
VLA 20 0844 N
VLA 20 0944 N
VLA 20 1094 N
|
91-20 0311/1-07102
91-20 0411/1-07112
91-20 0541/1-07122
91-20 0641/1-07132
91-20 0741/1-07142
91-20 0841/1-07152
91-20 0941/1-07162
91-20 1091/1-07172
|
|
|
|
|
|
|
|
