BALL SLEWING RING WITH FLANGE RINGS

External teeth Internal teeth Without teeth
VE20 VE32   VI20 VI32   VU20 VU32

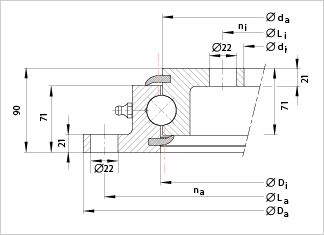

VU.32.0000 SERIES
1. Single-row design with four-point raceway geometry
2. Untoothed rings with flange thicknesses of 12 and 21 mm
3. Ball diameters 20 and 32 mm
4. Available ex stock or with a short delivery time as standard series in 14 sizes
5. Raceway diameters of 314 to 1,094 mm or 955 to 1,455 mm
6. For applications with light loads
7. Enables lightweight structures in spite of large bearing diameters
8. Applications: Handling technology, manlift platforms, turntables
JINB
Bearing Number
Main Dimensions
Fixing holes
Basic load ratings
Mass
Static
Dynamic
Da
di
Di
da
La
na
Li
ni

Cor
Coa

Cr
Ca
G
[mm]
[mm]
[mm]
[mm]
[mm]
[ - ]
[mm]
[ - ]
[kN]
[kN]
[kN]
[kN]
[kg]
VU.32.0955 1100 805 955 955 1060 30 845 30 1029 2754 411 479 131
VU.32.1055 1200 905 1055 1055 1160 30 945 30 1137 3043 427 497 145.5
VU.32.1155 1300 1005 1155 1155 1260 36 1045 36 1245 3331 442 514 158.5
VU.32.1255 1400 1105 1255 1255 1360 42 1145 42 1353 3619 456 531 171.5
VU.32.1355 1500 1205 1355 1355 1460 42 1245 42 1460 3908 469 546 186
VU.32.1455 1600 1305 1455 1455 1560 48 1345 48 1568 4196 482 561 200
90-32 0955/0-06015
90-32 1055/0-06025
90-32 1155/0-06035
90-32 1255/0-06045
90-32 1355/0-06055
90-32 1455/0-06065
