SLEWING DRIVES

Enclosed series JE3 JE5 JE7 JE9 JE12 JE14 JE17 JE21 JE25
Open series JO5 JO7 JO9 JO12 JO14 JO17 JO21 JO25

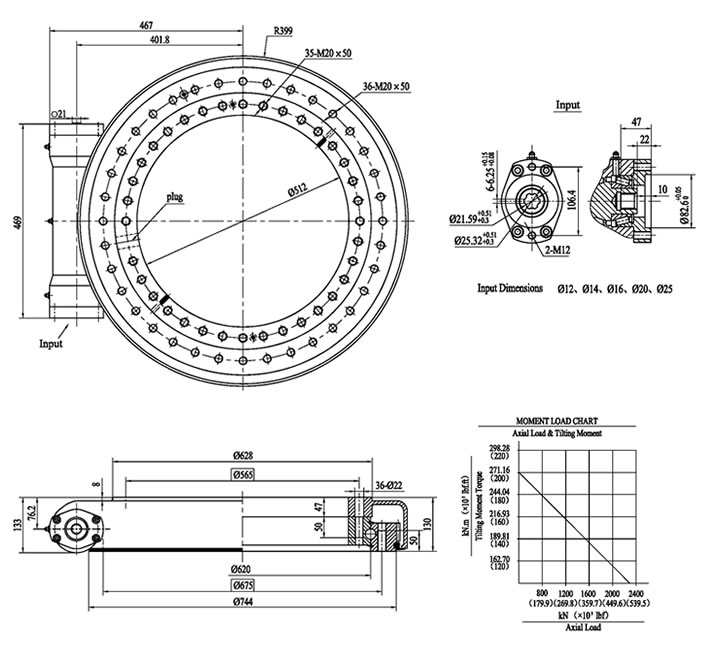

JE25 Main Parameters
Nominal
Torque
18 [ kN.m ]
13276 [ lbf.ft ]
Tilting Moment
Torque
271 [ kN.m ]
199879 [ lbf.ft ]
Holding
Torque
136.1 [ kN.m ]
100382 [ lbf.ft ]
Static Axial
Reting
2360 [ kN ]
530549 [ lbf ]
Static Radial
Rating
944 [ kN ]
212220 [ lbf ]
Dynamic Axial
Rating
590 [ kN ]
132637 [ lbf ]
Dynamic Radial
Rating
472 [ kN ]
106110 [ lbf ]
Module 5 [ - ]
Worm Shafts 1 [ - ]
Gear Ratio 150:1 [ - ]
Traching Precision 0.15° [ - ]
Weight 204 [ Kg ]

JINB professional slewing drive and slewing ring bearing manufacturer in China. Our products include slewing drives and slewing ring bearings, which are mainly applied in single or dual axis solar tracking systems, construction vehicles, mining machinery, construction machinery, port machinery, modular vehicles and small wind power systems

Slewing drives is the combination of slewing ring with the hourglass worm shaft, which provides more tooth contacy, increased drive torque and smoother rotation.

JINB Slewing drive mainly are open housing slewing drive and enclosed slewing drive. Based on these two types, slewing drives can also be classified as single worm and dual worm drive. We will provide the best solution according to the specific usage environment by customer.

JE3 (SE3)
JE5 (SE5)
JE7 (SE7)
JE9 (SE9)
JE12 (SE12)
JE14 (SE14)
JE17 (SE17)
JE21 (SE21)
JE25 (SE25)
