VSI200414N slewing ring bearing SI.6.20.0414 G1 JINB

 VSI200414N slewing ring bearing SI.6.20.0414 G1 JINB

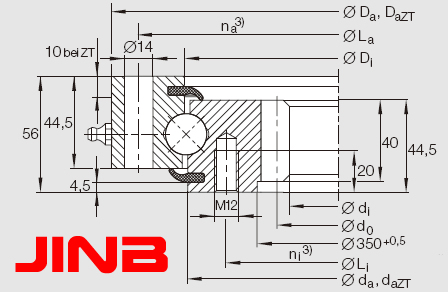

Slewing bearing No.VSI 20 0414 N
Weight[kg]31
Outer   diameter (O.D.)[mm]486
Inner   diameter (I.D.)[mm]325
Bore diameter   of outer ring[mm]415.5
Outside   diameter of inner ring[mm]412.5
Overall   height[mm]56
External bolt   circle diameter[mm]460
Number of   bolt hles24
Internal bolt   circle diameter[mm]375
Number of   bolt hles24
Bolt hole   diameter[mm]14
Bolt size[mm]M12
Height of   outer ring[mm]44.5
Height of   inner ring[mm]44.5
Gear P.C.D.[mm]335
Module[mm]5
Number of   Teeth67
JINB slewing bearingSI.6.20.0414 G1
