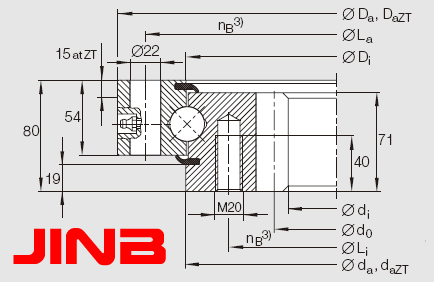

VSI251055N slewing ring bearing SI.6.25.1055 G1 JINB
| Slewing bearing No. | VSI251055N | |
| Weight | [kg] | 165 |
| Outer diameter (O.D.) | [mm] | 1155 |
| Inner diameter (I.D.) | [mm] | 910 |
| Bore diameter of outer ring | [mm] | 1053 |
| Outside diameter of inner ring | [mm] | 1057 |
| Overall height | [mm] | 80 |
| External bolt circle diameter | [mm] | 1115 |
| Number of bolt hles | 30 | |
| Internal bolt circle diameter | [mm] | 994 |
| Number of bolt hles | 30 | |
| Bolt hole diameter | [mm] | 22 |
| Bolt size | [mm] | M20 |
| Height of outer ring | [mm] | 54 |
| Height of inner ring | [mm] | 71 |
| Gear P.C.D. | [mm] | 930 |
| Module | [mm] | 10 |
| Number of Teeth | 93 | |
| JINB slewing bearing | SI.6.25.1055 G1 | |
