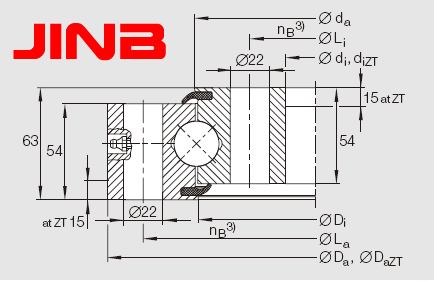

VSU250755 slewing ring bearing SU.6.25.0755 JINB
| Slewing bearing No. | VSU250755 | |
| Weight | [kg] | 90 |
| Outer diameter (O.D.) | [mm] | 855 |
| Inner diameter (I.D.) | [mm] | 655 |
| Bore diameter of outer ring | [mm] | 753 |
| Outside diameter of inner ring | [mm] | 757 |
| Overall height | [mm] | 63 |
| External bolt circle diameter | [mm] | 815 |
| Number of bolt hles | 24 | |
| Internal bolt circle diameter | [mm] | 695 |
| Number of bolt hles | 24 | |
| Bolt hole diameter | [mm] | 22 |
| Bolt size | [mm] | 22 |
| Height of outer ring | [mm] | 54 |
| Height of inner ring | [mm] | 54 |
| Gear P.C.D. | [mm] | / |
| Module | [mm] | / |
| Number of Teeth | / | |
| JINB slewing bearing | SU.6.25.0755 | |
