TRIPLE ROW ROLLER SLEWING BEARINGS

External teeth
Internal teeth

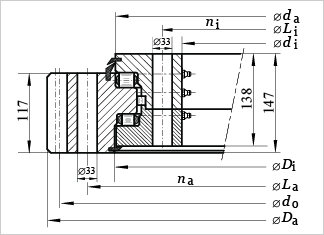

RE.9.25.0000 G3 SERIES
1. Triple-Row Roller Slewing Rings.
2. Roller diameters 10 to 100 mm
3. Plastic, steel or brass cage segments according to loads (can also be supplied with closed cage)
4. Designed to provide the combination of the highest capacity in the smallest configuration
5. Greater static and dynamic load capacity, higher rigidity and constant friction torque compared with all other Slewing 6. Ring designs (with the same raceway diameter)
7. High requirements on the rigidity and precision of the mounting structure
8. Standard series with outside diameters from 1,462 to 5,179 mm
9. Mostly supplied as customer specific designs
JINB
Bearing Number
Main Dimensions Fixing holes Gear teeth Tooth force Basic load ratings Mass
Static Dynamic
Da di Di da La na Li ni do m z Fz norm Fz max  Cor Coa  Cr Ca G
[mm] [mm] [mm] [mm] [mm] [ - ] [mm] [ - ] [mm] [mm] [ - ] [kN] [kN] [kN] [kN] [kN] [kN] [kg]
RE.9.25.1800 G3 2076.8 1619 1826 1836 1925 36 1685 36 2032 16 127 172 306 1348 10308 728 2108 1126
RE.9.25.2000 G3 2268.8 1819 2026 2036 2125 44 1885 44 2224 16 139 172 306 1502 11454 772 2229 1216
RE.9.25.2240 G3 2516.4 2059 2266 2276 2366 48 2125 48 2466 18 137 202 358 1687 12830 821 2366 1378
RE.9.25.2500 G3 2786.4 2319 2526 2536 2625 54 2385 54 2736 18 152 202 358 1887 14321 870 2508 1567
RE.9.25.2800 G3 3096 2619 2826 2836 2925 60 2685 60 3040 20 152 232 407 2118 16041 926 2664 1785
31-25 1800/2-06800
31-25 2000/2-06810
31-25 2240/2-06820
31-25 2500/2-06830
31-25 2800/2-06840
191.25.1800.990.41.1502
191.25.2000.990.41.1502
191.25.2240.990.41.1502
191.25.2500.990.41.1502
191.25.2800.990.41.1502
