TRIPLE ROW ROLLER SLEWING BEARINGS

External teeth					Internal teeth
RE920	RE925	RE932	RE940	RE950	RI920	RI925	RI932	RI940	RI950

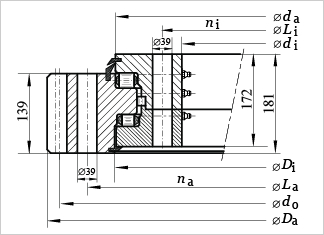

RE.9.32.0000 G3 SERIES

1. Triple-Row Roller Slewing Rings.
2. Roller diameters 10 to 100 mm
3. Plastic, steel or brass cage segments according to loads (can also be supplied with closed cage)
4. Designed to provide the combination of the highest capacity in the smallest configuration
5. Greater static and dynamic load capacity, higher rigidity and constant friction torque compared with all other Slewing 6. Ring designs (with the same raceway diameter)
7. High requirements on the rigidity and precision of the mounting structure
8. Standard series with outside diameters from 1,462 to 5,179 mm
9. Mostly supplied as customer specific designs

JINB Bearing Number	Main Dimensions				Fixing holes				Gear teeth			Tooth force		Basic load ratings				Mass
	Main Dimensions				Fixing holes				Gear teeth			Tooth force		Static		Dynamic		Mass
	Da	di	Di	da	La	na	Li	ni	do	m	z	Fz norm	Fz max	Cor	Coa	Cr	Ca	G
	[mm]	[mm]	[mm]	[mm]	[mm]	[ - ]	[mm]	[ - ]	[mm]	[mm]	[ - ]	[kN]	[kN]	[kN]	[kN]	[kN]	[kN]	[kg]
RE.9.32.2240 G3	2552.4	2022	2270	2281	2395	40	2100	40	2502	18	139	228	401	1862	15459	1028	3280	1975
RE.9.32.2500 G3	2822.4	2282	2530	2541	2655	44	2360	44	2772	18	154	228	401	2085	17255	1091	3459	2260
RE.9.32.2800 G3	3136	2582	2830	2841	2955	48	2660	48	3080	20	154	260	465	2341	19329	1158	3700	2576
RE.9.32.3150 G3	3476	2932	3180	3191	3305	56	3010	56	3420	20	171	260	465	2640	21748	1235	3939	2828
RE.9.32.3550 G3	3889.6	3332	3580	3591	3705	66	3410	66	3828	22	174	295	525	2982	24513	1316	4203	3249
RE.9.32.4000 G3	4351.6	3782	4030	4041	4155	72	3860	72	4290	22	195	295	525	3367	27623	1405	4480	3752

31-32 2240/2-07300
31-32 2500/2-07310
31-32 2800/2-07320
31-32 3150/2-07330
31-32 3550/2-07340
31-32 4000/2-07350

191.32.2240.990.41.1502
191.32.2500.990.41.1502
191.32.2800.990.41.1502
191.32.3150.990.41.1502
191.32.3550.990.41.1502
191.32.4000.990.41.1502
