VU200220 small slewing ring bearing thin-wall slewing bearings without gear

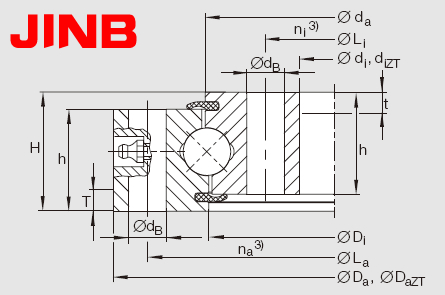

| Slewing bearing No. | VU200220 | |
| Weight | [kg] | 16 |
| Outer diameter (O.D.) | [mm] | 302 |
| Inner diameter (I.D.) | [mm] | 138 |
| Bore diameter of outer ring | [mm] | 219 |
| Outside diameter of inner ring | [mm] | 221 |
| Overall height | [mm] | 46 |
| External bolt circle diameter | [mm] | 270 |
| Number of bolt hles | 10 | |
| Internal bolt circle diameter | [mm] | 170 |
| Number of bolt hles | 10 | |
| Bolt hole diameter | [mm] | 18 |
| Bolt size | [mm] | 18 |
| Height of outer ring | [mm] | 41 |
| Height of inner ring | [mm] | 41 |
| Gear P.C.D. | [mm] | / |
| Module | [mm] | / |
| Number of Teeth | / | |
| tooth width | [mm] | / |
| JINB slewing bearing | SUL200220 | |
