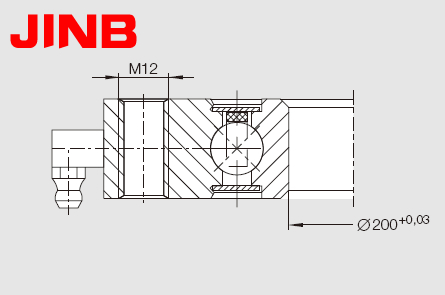

VU200260 small slewing ring bearing thin-wall slewing bearings without gear
| Slewing bearing No. | VU200260 | |
| Weight | [kg] | 15 |
| Outer diameter (O.D.) | [mm] | 329 |
| Inner diameter (I.D.) | [mm] | 191 |
| Bore diameter of outer ring | [mm] | 259 |
| Outside diameter of inner ring | [mm] | 261 |
| Overall height | [mm] | 46 |
| External bolt circle diameter | [mm] | 305 |
| Number of bolt hles | 20 | |
| Internal bolt circle diameter | [mm] | 215 |
| Number of bolt hles | 20 | |
| Bolt hole diameter | [mm] | 14 |
| Bolt size | [mm] | 14 |
| Height of outer ring | [mm] | 41 |
| Height of inner ring | [mm] | 41 |
| Gear P.C.D. | [mm] | / |
| Module | [mm] | / |
| Number of Teeth | / | |
| tooth width | [mm] | / |
| JINB slewing bearing | SUL200260 | |
