VU140325 small slewing ring bearing thin-wall slewing bearings without gear

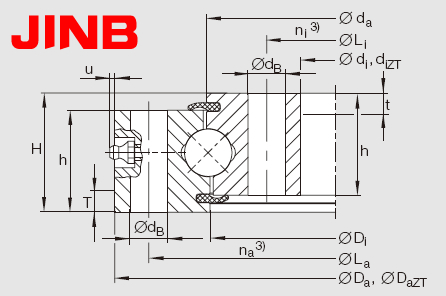

| Slewing bearing No. | VU140325 | |
| Weight | [kg] | 12 |
| Outer diameter (O.D.) | [mm] | 380 |
| Inner diameter (I.D.) | [mm] | 270 |
| Bore diameter of outer ring | [mm] | 324 |
| Outside diameter of inner ring | [mm] | 326 |
| Overall height | [mm] | 35 |
| External bolt circle diameter | [mm] | 360 |
| Number of bolt hles | 24 | |
| Internal bolt circle diameter | [mm] | 290 |
| Number of bolt hles | 24 | |
| Bolt hole diameter | [mm] | 11 |
| Bolt size | [mm] | 11 |
| Height of outer ring | [mm] | 30 |
| Height of inner ring | [mm] | 30 |
| Gear P.C.D. | [mm] | / |
| Module | [mm] | / |
| Number of Teeth | / | |
| tooth width | [mm] | / |
| JINB slewing bearing | SUL140325 | |
